14 Cu.Ft. Dipping Cabinet (Unassembled) - NOVA45GDC

14 Cu.Ft. Dipping Cabinet (Unassembled)

Model: NOVA45GDC

14 Cu.Ft. Dipping Cabinet (Unassembled) NOVA45GDC14 Cu.Ft. Dipping Cabinet (Unassembled) NOVA45GDC14 Cu.Ft. Dipping Cabinet (Unassembled) NOVA45GDC14 Cu.Ft. Dipping Cabinet (Unassembled) NOVA45GDC14 Cu.Ft. Dipping Cabinet (Unassembled) NOVA45GDC
14 Cu.Ft. Dipping Cabinet (Unassembled) NOVA45GDC
14 Cu.Ft. Dipping Cabinet (Unassembled) NOVA45GDC
14 Cu.Ft. Dipping Cabinet (Unassembled) NOVA45GDC
14 Cu.Ft. Dipping Cabinet (Unassembled) NOVA45GDC
14 Cu.Ft. Dipping Cabinet (Unassembled) NOVA45GDC

Color : White

14 Cu.Ft. Dipping Cabinet (Unassembled) NOVA45GDC
White

Key Features

  • Commercially listed

  • European dipping cabinet

  • Glass sneezeguard included

  • Wide temperature range

  • Ice cream tub holders

  • Holds 14 standard 3 gallon tubs

  • Aluminum work surface

  • Digital thermostat

Read More

Description

Summit Commercial's line offers the industry's best value on European ice cream storage and display, with a full series of chest freezers and matching glass sneezeguards. Made for us by Elcold in Denmark, the NOVA45GDC is a 53" wide flat top ice cream freezer and compatible glass sneezeguard with a curved design and aluminum work surface. The sneezeguard is packaged unassembled with the freezer for safer shipping and is easy to install for fast use. The NOVA45 freezer features 14.1 cu.ft. of storage. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF. Inside, the NOVA45 freezer features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 4 wire tub holder baskets with plastic lids to hold 8 11" round/3 gallon ice cream tubs, with room to store an additional 6 under the baskets. Extra novelty baskets are also packaged inside for alternate storage. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting. The NOVA45GDC is UL-S listed to NSF-7 commercial standards. Additional sizes are available. Note: Gelato pan holders are also available. To substitute the baskets, add complimentary upgrade "GLTO" or contact our sales team at 718-893-3900 ext. 507.
Read More

Available from Basil Appliance Sales & Service, serving customers throughout Venice to Port Charlotte.

Features
Specifications

Features

Commercially listed

UL-S listed to NSF-7 Standards for use in commercial establishments

European dipping cabinet

Ice cream freezer made in Denmark with glass sneezeguard included for the optimum serving and storing conditions

Glass sneezeguard included

3-piece glass sneezeguard made in Denmark with a curved front for optimum visbility

Wide temperature range

Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats

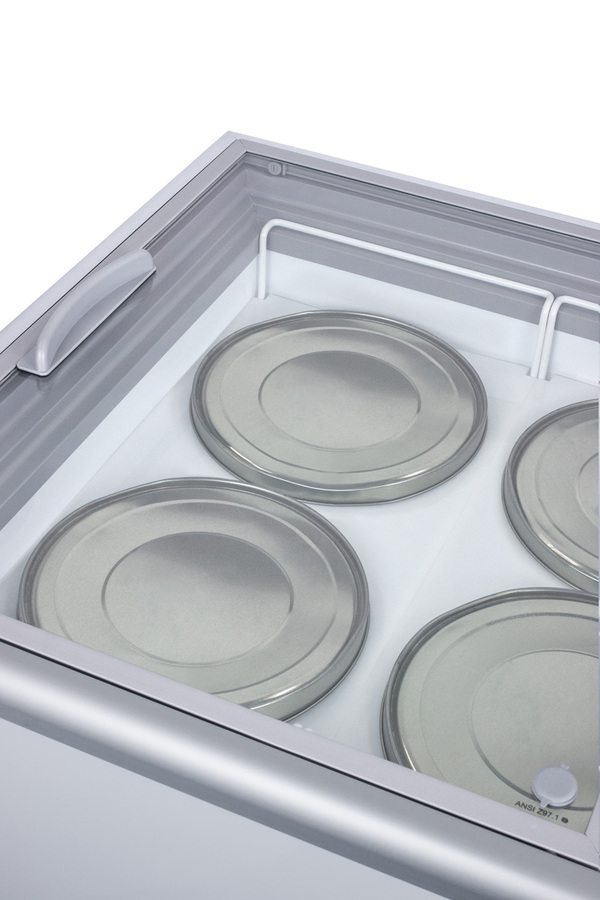

Ice cream tub holders

Four epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place

Holds 14 standard 3 gallon tubs

Unit can store 6 tubs on the floor and display an additional 8 using the provided baskets

Aluminum work surface

Sneezeguard surface is finished in brushed aluminum to hold up to heavy duty use in busy commercial settings

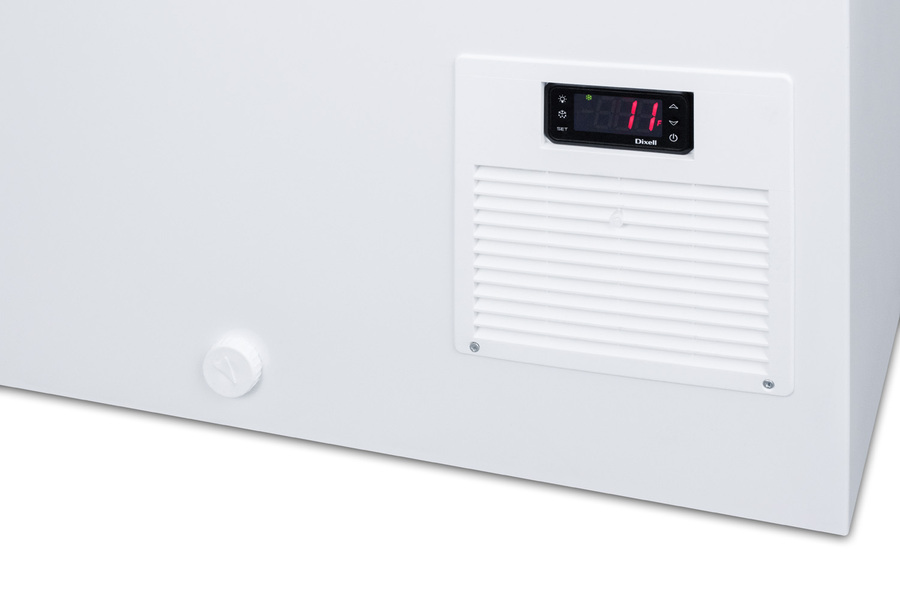

Digital thermostat

Electronic controls for more precise temperature management

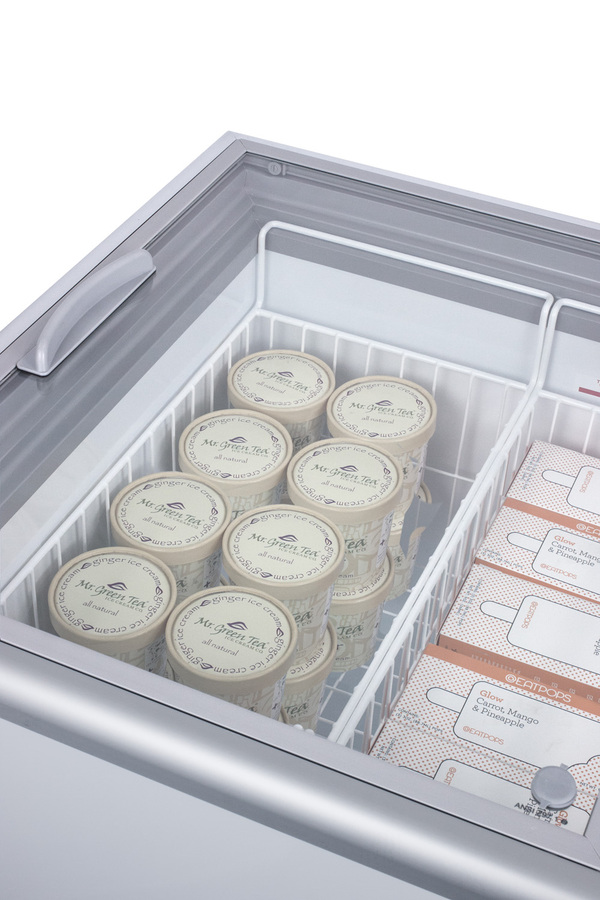

Novelty baskets included

Three extra epoxy-coated wire baskets packaged inside freezer for standard novelty treats

Sliding glass lid

Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

Strong insulation

3" thick insulation helps to ensure items stay cold

Casters

Heavy duty wheels for smooth mobility (ship unassembled)

Manual defrost

Static cooling system for improved temperature stability

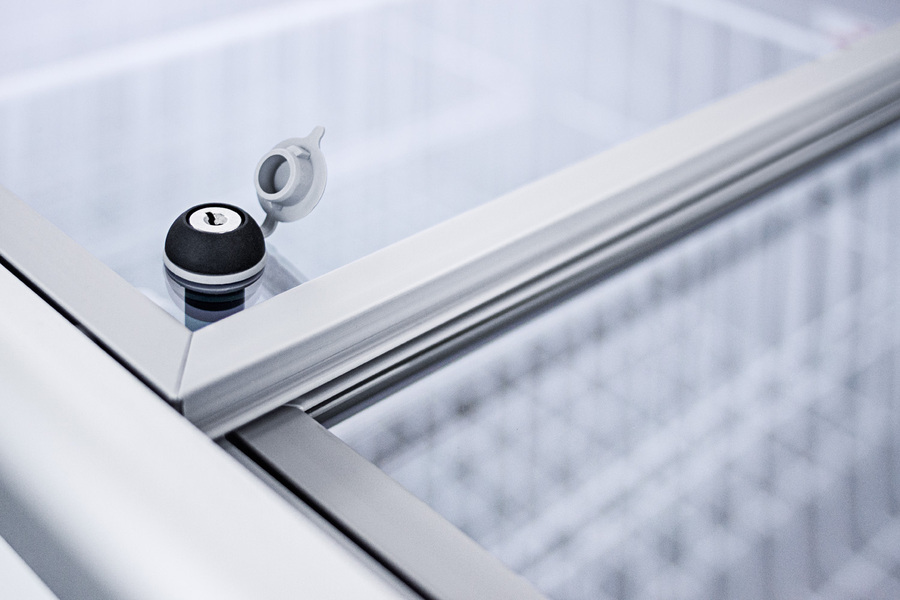

Removable lock

A keyed lock is included for optional use

Defrost drain

Front located for easier defrosting

Fan-cooled compressor

Offers improved temperature performance throughout the interior

Steel interior

Durable construction in a white finish for easy visibility

Easy assembly

Sneezeguard ships unassembled for safer transportation and can be installed in just a few easy steps

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Dimensions & Weight

Width53 in.
Height49.5 in.
Length27.25 in.
Weight250 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement41.37 ft³
Dimensional Weight514.32 lbs.
Total of Cubes41.37 ft³
Total of Dimensional Weight514.32 lbs.

Overview Freezer

Nominal Height50.0" (127 cm)
Height of Cabinet49.5" (126 cm)
Nominal Width53.0" (135 cm)
Width53.0" (135 cm)
Nominal Depth28.0" (71 cm)
Depth27.25" (69 cm)
Capacity14.1 cu.ft. (399 L)
Defrost TypeManual
DoorGlass
CabinetWhite
US Electrical SafetyUL
Canadian Electrical SafetyULC
SanitationUL-S
Amps7.2
Voltage/Frequency115 V AC/60 Hz
Weight250.0 lbs. (113 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101065021
Door SwingSliding
Interior Height26.0" (66 cm)
Interior Width46.75" (119 cm)
Interior Depth21.0" (53 cm)
Thermostat TypeDigital
Refrigerant TypeR290
Refrigerant Amount3.03 oz.
High Side PSI345.0
Low Side PSI140.0
Wheels4
Compressor Step Height9.75" (25 cm)
Compressor Step Width7.88" (20 cm)
Compressor Step Depth21.0" (53 cm)
Temperature Range-13 to 23ºF
