24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) - ALFZ51IF

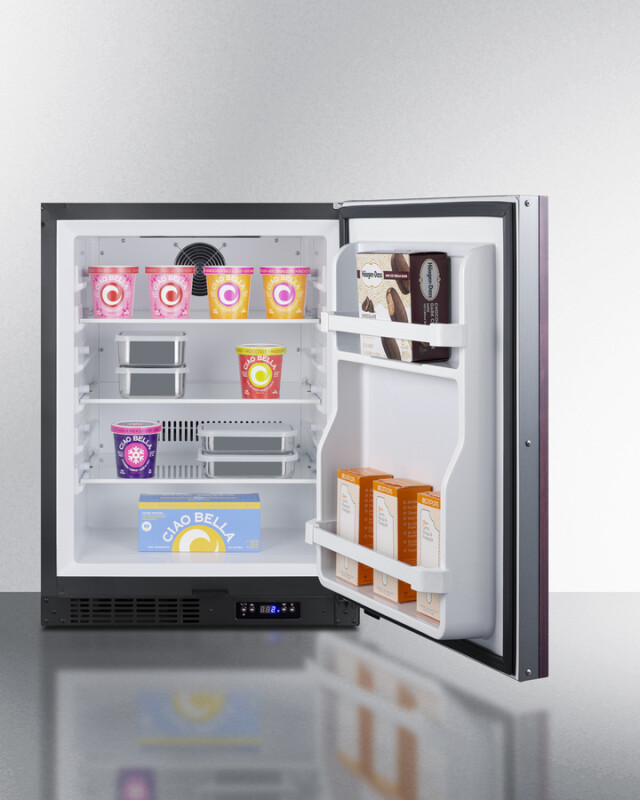

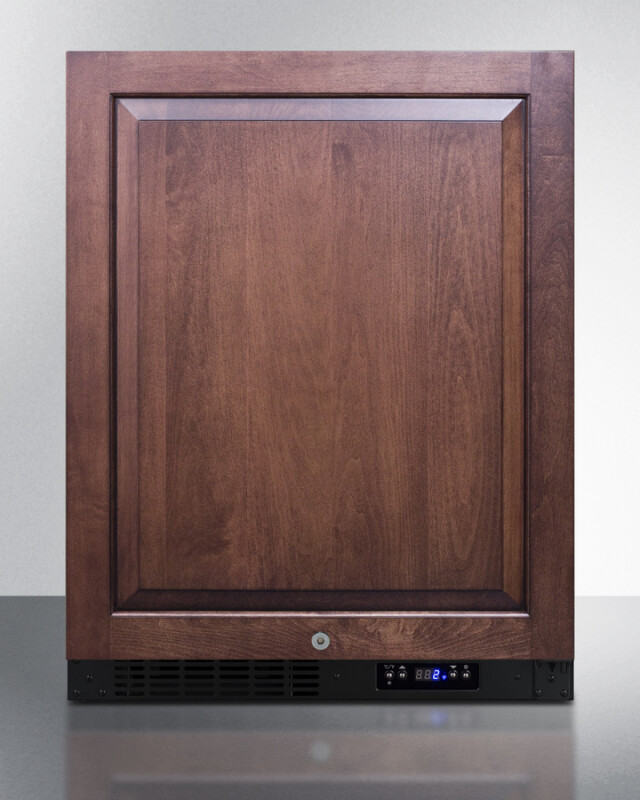

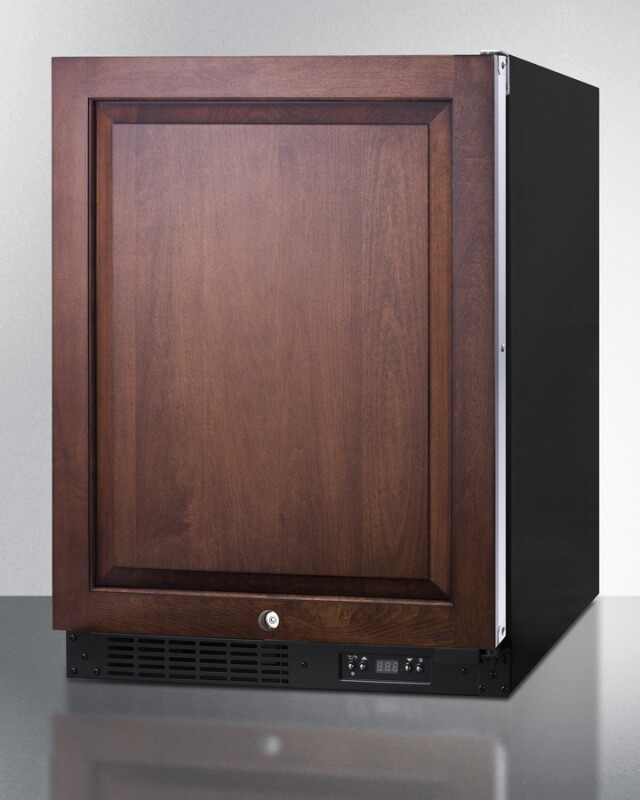

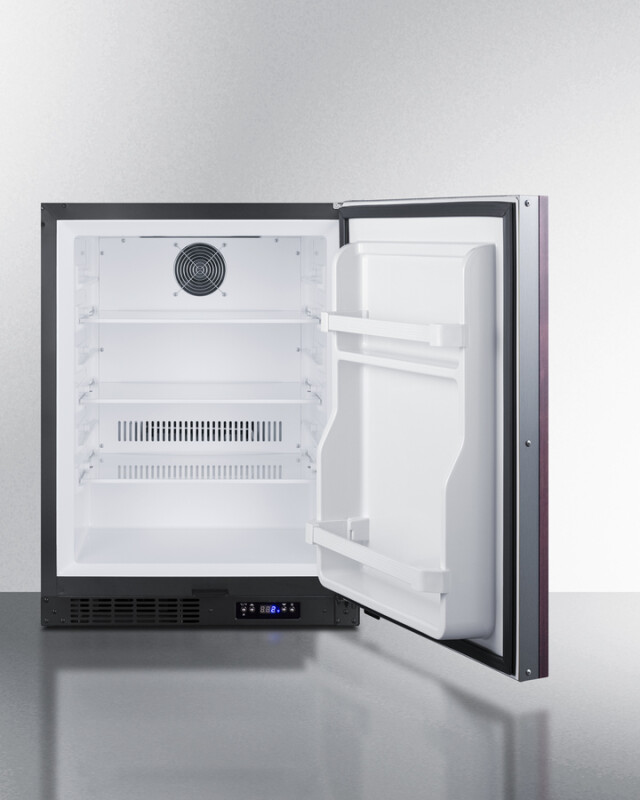

24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included)

Model: ALFZ51IF

24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ51IF24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ51IF24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ51IF24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ51IF24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ51IF
24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ51IF
24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ51IF
24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ51IF
24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ51IF
24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ51IF

Color : Panel-Ready

24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ51IF
Panel-Ready

Key Features

  • Panel-ready door

  • White interior

  • Brake shelving system

  • Internal fan

  • Integrated hinge

  • Matching refrigerator

  • 100% CFC free

  • CARB Compliant

Read More

Description

Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators. The ALFZ51IF is a 24 inch wide all-freezer designed and approved for residential or commercial use. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 3/4" H x 23 3/16" W; 3/4" thick with a maximum weight of 10 lbs.). The door is factory reversible, and users must supply their own door handle. This unit has a flush back for easy cleaning and a right angle plug for a better fit. A temperature alarm offers added security should the temperature go beyond the setpoint, and the optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance for up to 96 hours. The frost-free cooling system keeps the unit running efficiently with little user maintenance, and the internal fan ensures the unit is evenly cooled. Digital controls ensure easy temperature management. Inside, three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two door racks are ideal for keeping commonly accessed items in easy reach. With its advanced user features and versatile design, the ALFZ51IF is an excellent addition to any ADA compliant setting looking for a frost-free freezer with a modern, elegant look. To create a matching set, pair with the AL55IF refrigerator.
Read More

Available from Basil Appliance Sales & Service, serving customers throughout Venice to Port Charlotte.

Features
Specifications
Certifications

Features

Panel-ready door

Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 3/16" W x 27 3/4" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles

White interior

Classic interior allows for easy cleaning and viewing of products

Brake shelving system

Provides added safety when loading and unloading the unit's 3 shelves

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Integrated hinge

Flat stainless steel hinge ensures no added height is needed when installing under a counter

Matching refrigerator

Pair with Summit AL55IF to create a matching ADA height set

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

ADA compliant

32” height allows for installation within ADA compliant spaces

Commercially approved

ETL-S listed to NSF-7 commercial standards

Built-in capable

Front-breathing design allows the unit to be built-in under counters

Digital control panel

Makes for easy temperature reading/management with electronic controls inside

Factory installed lock

Keyed lock for secure interior, with two keys included

Adjustable shelving

Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior’s contents

Automatic defrost

Reduced maintenance with auto defrost system

Temperature alarm

Alarm sounds if temperature goes out of recommended range after 2 hours

Sabbath mode

Optional feature disables alarms, interior light, and displays for up to 96 hours

Reversible door

User-reversible door swing makes it easy to best accommodate your setting

Fully finished black cabinet

Allows unit to be used freestanding

Certifications

ADA Compliant certification

ADA Compliant

Specifications

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width23.38 in.
Height31.63 in.
Length23.38 in.
Weight95 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement10.01 ft³
Dimensional Weight124.39 lbs.
Total of Cubes10.01 ft³
Total of Dimensional Weight124.39 lbs.

Overview Freezer

Nominal Height32.0" (81 cm)
Height of Cabinet31.63" (80 cm)
Nominal Width24.0" (61 cm)
Width23.38" (59 cm)
Nominal Depth24.0" (61 cm)
Depth23.38" (59 cm)
Depth with door at 90°45.75" (116 cm)
Capacity4.0 cu.ft. (113 L)
Defrost TypeFrost-Free
DoorPanel-Ready
CabinetBlack
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
SanitationETL-S
Energy Usage/Year380.0kWh/year
Amps1.3
Voltage/Frequency115 V AC/60 Hz
Weight95.0 lbs. (43 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101089010
Door SwingRHD
ReversibleFactory Reversible
Interior Height23.75" (60 cm)
Interior Width18.5" (47 cm)
Interior Depth16.75" (43 cm)
Shelf TypeGlass
Shelf Qty3
Adjustable ShelvesYes
Thermostat TypeDigital
Fan TypeInterior and Exterior
Refrigerant TypeR600a
Refrigerant Amount1.06 oz.
High Side PSI150.0
Low Side PSI50.0
Level Legs4
Compressor Step Height5.0" (13 cm)
Compressor Step Width18.5" (47 cm)
Compressor Step Depth5.0" (13 cm)
Temperature Range-11°F to 11°F
Sabbath ModeYes
Sound Level40.1 dB
